The RFID Pod is a module within the Realix ERC system, designed for RFID-based interactions and puzzles in an escape room. It allows players to use RFID tags or cards as part of game mechanics, unlocking new ways to integrate identification, access control, and interactive triggers. The RFID Pod connects to the Realix SBUS, is auto-discoverable, and can be easily configured within the ERC system. It is powered over the SBUS.

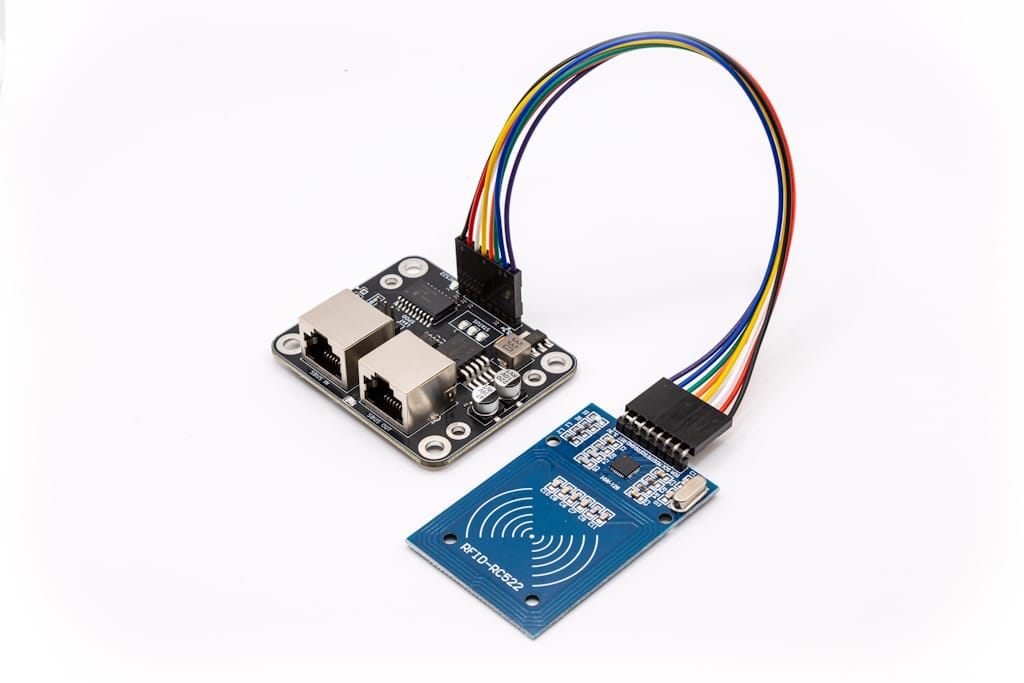

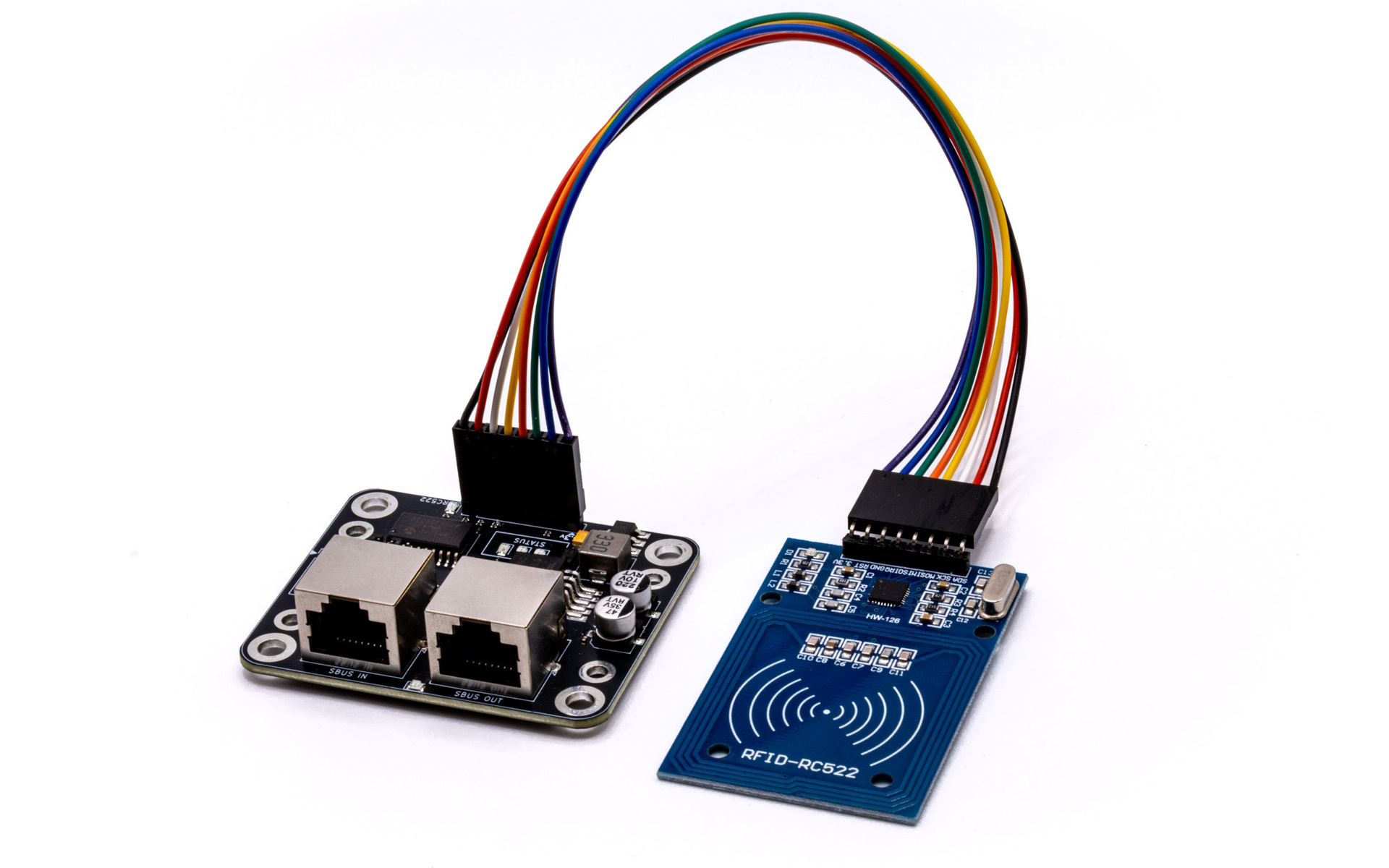

One of the key features of the RFID Pod is its detachable RFID reader, which can be positioned away from the main pod. This flexibility allows mounting the reader in compact spaces, such as inside props, hidden compartments, or behind panels

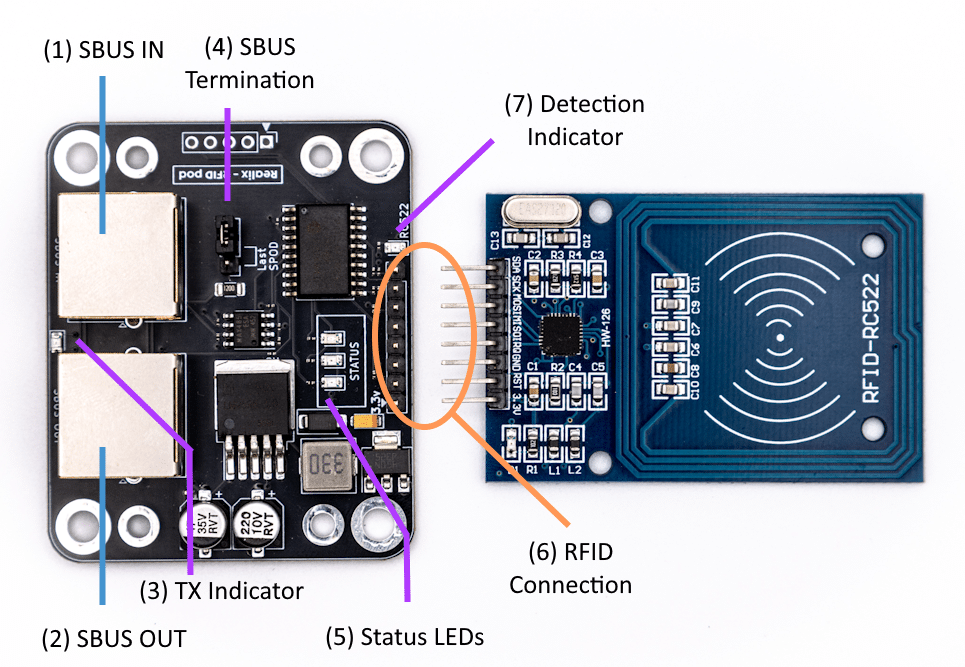

Hardware Configuration
- SBUS IN connector. See SBUS Connector Specification.
- SBUS OUT connector. See SBUS Connector Specification.
- TX Indicator. This LED blinks when data is being transmitted, providing a visual indication that the Pod is actively sending.
- SBUS Termination. The SBUS signal must be terminated on the last SBUS Pod in the chain. All other Pods in the chain should remain unterminated. To enable termination on the last Pod, place the jumper in the “Last SPOD” position.
- Status LED’s.
- Red – The Pod has power but is not receiving any messages.
- Yellow – The Pod is receiving messages from the SBUS Box, but only in discovery mode.
- Green – The Pod is fully operational: ready to receive output commands and send input status.

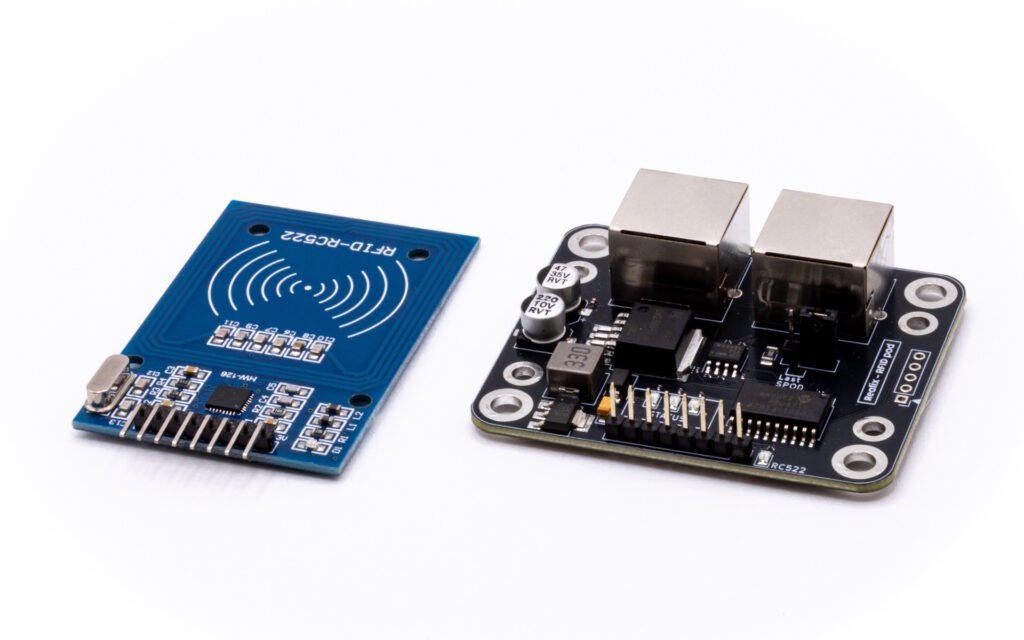

- RFID Connection. The reader connects to the Pod via a detachable flat cable, allowing the reader to be mounted separately from the main unit. Ensure that the Pod and reader are connected with the pins aligned as shown in the image above. The 3.3 V reference point is available on both devices for correct alignment.
- Detection Indicator. When powered, the reader’s LED lights up whenever an RFID tag is detected.
